Key Features
Technical Specifications
| Input Power | Solar Panel (12V / 20W) | Control Method | RF Remote / Bluetooth App |
| Battery Type | LiFePO₄ 12V / 7Ah | Enclosure Rating | IP65 Weatherproof |
| Max Current | 30A Total (7.5A per channel max when all 4 channels are active) | Operating Temperature | -20°C to 60°C |
| Motor Support | Up to 4 linear actuator motors (12V DC) | Dimensions | 220 × 150 × 150 mm |
| Mounting | Surface Mount | Weight | 10 lbs |
Frequently Asked Questions
Yes. A physical RF remote is included, giving users a simple handheld control option in addition to the Bluetooth app.
Yes. The Bluetooth app is included and allows users to connect to the kit and control the motors from a smartphone. The app is available for both Android and iOS devices.

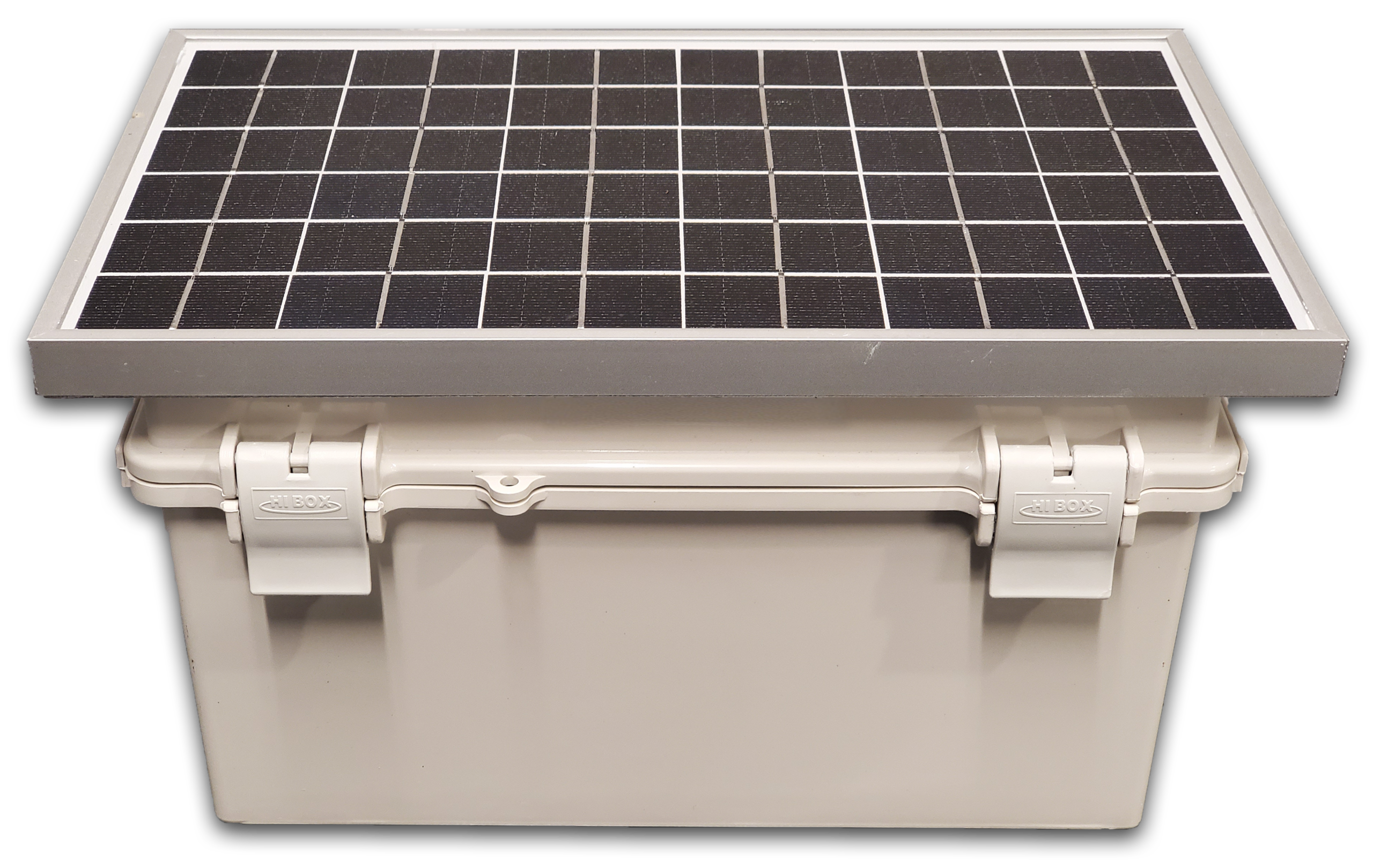

Yes. The Solar Motor Kit is designed for outdoor use and should be mounted in a high, sunny area where the solar panel can receive strong sunlight.
Under normal use, the rechargeable battery is designed to provide reliable performance for years. Actual battery life may vary depending on usage, sun exposure, and operating conditions.
The kit is designed to control up to four 12V linear actuator motors. The motor driver has a total current budget of 30A across all four channels, so if four motors operate at the same time, each motor should draw less than 7.5A under load.
